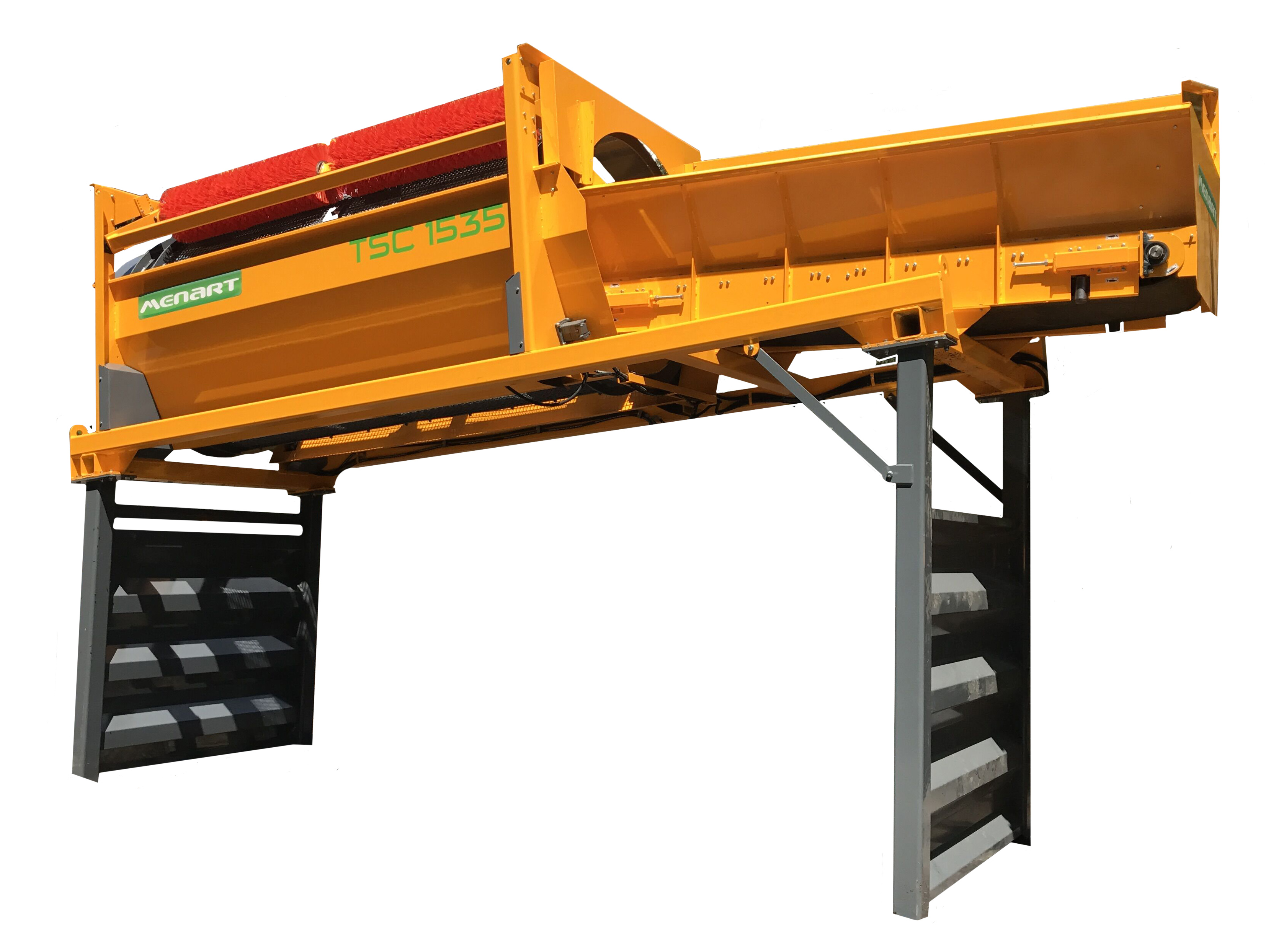

Compact trommel screens

HomeCOMPOSTING MACHINERYCompact trommel screens

TILTED DRUM TECHNOLOGY

Inside the drum, the material moves forward thanks to both the drum inclination and the lifting bars.

MECHANICAL REFINING EFFECT

The material is carried to the top of the drum and then falls onto the bottom mesh. The impact of the fall helps to break up and better sift the agglomerated clods.

EFFICIENT SCREENING

The grids are made of round section wires which make easy for the fine material to pass through. It is a top efficient sifting mesh. Additionally, the drums are equipped with monofibre wear resistant brushes for self-cleaning action.

OPTIMIZED YIELD WITH COMPACT MACHINE

The efficiency of the screening technology ensures larger production capacity on a shorter length drum.

CLOGGING-FREE

The inclined drum technology avoids use of conveying auger inside the drum, which considerably reduces grid clogging.

VERSATILE USE

Users can adjust the drum rotation speed as well as the drum feeding speed depending on working requirements.

  • TILTED DRUM TECHNOLOGY

    Inside the drum, the material moves forward thanks to both the drum inclination and the lifting bars.

  • MECHANICAL REFINING EFFECT

    The material is carried to the top of the drum and then falls onto the bottom mesh. The impact of the fall helps to break up and better sift the agglomerated clods.

  • EFFICIENT SCREENING

    The grids are made of round section wires which make easy for the fine material to pass through. It is a top efficient sifting mesh. Additionally, the drums are equipped with monofibre wear resistant brushes for self-cleaning action.

  • OPTIMIZED YIELD WITH COMPACT MACHINE

    The efficiency of the screening technology ensures larger production capacity on a shorter length drum.

  • CLOGGING-FREE

    The inclined drum technology avoids use of conveying auger inside the drum, which considerably reduces grid clogging.

  • VERSATILE USE

    Users can adjust the drum rotation speed as well as the drum feeding speed depending on working requirements.

    Technical characteristics:

      TSC-1535TSC-1950TSC-1960
    Drum screen diameter(m)1,55 (5'1'')1,89 (6'2'')1,89 (6'2'')
    Drum screen overall length(m)3,74 (12'3'')5,26 (17'3'')6,18 (20'3'')
    Screening area(m2)13,9 (150)25 (270)30,5 (328)
    Hopper capacity(m3)2,5 (3)4 (5)4 (5)
    Feeding height(m)2,61 (8'7'')3 (9'10'')3,05 (10')
    Diesel engine power(hp)508383
    Electric motor powerKw183030
    Indicative capacity(m3/h)40 (50) 100 (130)120 (160)

    Points forts

    Les tamis TSC se concentrent sur l’essentiel: TAMISER. Simple dans leur fonctionnement, ils sont compacts et rentables. Avec des roues optionnelles, ils peuvent être remorqués sur le site, offrant la possibilité d’être facilement déplacés.
